SVT - Spiral Convoluted Teflon® Vent Tubing Unbraided
- Unpigmented, heavy wall Teflon® PTFE hose
- Self cleaning open pitch helical convolutions
- Seamless vacuum formed
- Flare-through design or cuff end
Benefits:
- Very short bend radii
- Convolutions drain easily and self clean in vertical orientations
- End design ensures PTFE protection
Applications:
- Low pressure or venting applications
Connections:
- Flanged
- Cam and Groove
- Sanitary
- NPT
- Cuffs (no ends)
| Nominal Size | ID | OD | Bend Radius | Working Pressure @ 70°F | Burst Pressure @ 70°F | Natural Part Number | ||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|
| Inch | DN | Inch | MM | Inch | MM | Inch | MM | PSI | BAR | PSI | BAR | |
| 1/2 | 15 | 0.500 | 12.7 | 0.700 | 17.8 | 2 | 50.8 | 25 | 1.7 | 100 | 6.9 | Consult Sales |
| 3/4 | 20 | 0.760 | 19.3 | 0.990 | 25.1 | 2 | 50.8 | 25 | 1.7 | 100 | 6.9 | Consult Sales |
| 1 | 25 | 1.025 | 26.0 | 1.280 | 32.5 | 3 | 76.2 | 25 | 1.7 | 100 | 6.9 | Consult Sales |
| 1-1/2 | 40 | 1.525 | 38.7 | 1.960 | 49.8 | 4.5 | 114.3 | 20 | 1.4 | 80 | 5.5 | Consult Sales |
| 2 | 50 | 2.025 | 51.4 | 2.390 | 60.7 | 8 | 203.2 | 20 | 1.4 | 80 | 5.5 | Consult Sales |
| 3 | 75 | 2.913 | 74.0 | 3.622 | 92.0 | 14 | 355.6 | 20 | 1.4 | 80 | 5.5 | Consult Sales |
| 4 | 100 | 3.937 | 100.0 | 4.921 | 125.0 | 20 | 508.0 | 15 | 1.0 | 60 | 4.1 | Consult Sales |

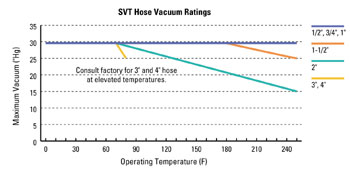

NOTE: In an assembly, the pressure ratings of fittings may be less than hose pressure ratings.
Content Copyright Crane Co., used with permission
Teflon® is a registered trademark of E.I. du Pont de Nemours and Company.
