CPB - Convoluted Teflon® Polypropylene Braided
- Unpigmented, heavy wall Teflon® PTFE liner
- Self cleaning open pitch helical convolutions
- Seamless vacuum formed liner
- UV Stabilized blue polypropylene standard braid
- Options available: conductive liner, alternate braid
materials, flare-through design
Benefits:
- Very short bend radii
- Convolutions drain easily and self clean in vertical orientations
- Unlimited fitting options
- Light weight, easy to clean Polypropylene braid

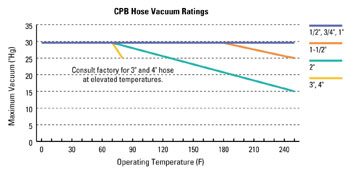

- Full vacuum up to 2"
Applications:
- Low temperature and low pressure applications
- Cleanability well suited to sanitary and clean room applications
Connections:
- Flanged
- Cam and Groove
- Sanitary
- NPT

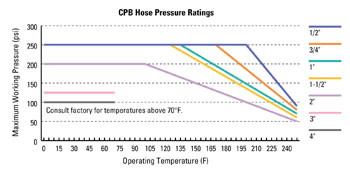

Nominal Size | ID | OD | Bend Radius | Working Pressure @ 70°F | Burst Pressure @ 70°F | Natural Part Number | Conductive Part Number | ||||||
---|---|---|---|---|---|---|---|---|---|---|---|---|---|
Inch | DN | Inch | MM | Inch | MM | Inch | MM | PSI | BAR | PSI | BAR | ||
3/4 | 20 | 0.720 | 18.3 | 1.160 | 29.5 | 2.75 | 69.9 | 250 | 17.2 | 1000 | 68.9 | 12-CPB-W | 12-CPB-B |
1 | 25 | 0.970 | 24.6 | 1.440 | 36.6 | 4 | 101.6 | 250 | 17.2 | 1000 | 68.9 | 16-CPB-W | 16-CPB-B |
1-1/2 | 40 | 1.540 | 39.1 | 2.155 | 54.7 | 6 | 152.4 | 250 | 17.2 | 1000 | 68.9 | 24-CPB-W | 24-CPB-B |
2 | 50 | 1.970 | 50.0 | 2.560 | 65.0 | 7.5 | 190.5 | 200 | 13.8 | 800 | 55.2 | 32-CPB-W | 32-CPB-B |
3 | 75 | 2.913 | 74.0 | 3.922 | 99.6 | 14 | 355.6 | 125 | 8.6 | 800 | 55.2 | 48-CPB-W | 48-CPB-B |
4 | 100 | 3.937 | 100.0 | 5.221 | 132.6 | 16 | 406.4 | 100 | 6.9 | 800 | 55.2 | 64-CPB-W | 64-CPB-B |
NOTE: In an assembly, the pressure ratings of fittings may be less than hose pressure ratings.
